YLM-QCW Laser Control Crad / DLC QCW Control Card / EZCAD Control Card

Brand Name : BJJCZ
Model Number : qcw
Certification : CE
Place of Origin : China
MOQ : 1pcs
Price : negotiation
Payment Terms : T/T
Supply Ability : 1000set
Delivery Time : 5 days
Packaging Details : Carton
purpose : laser marking
color : green
Contact Now
  • Steps For Safe Operation
    • Carefully check your application program before running it. Programming errors can cause a break down of the system. In this case neither the laser nor the scan head can be controlled.
    • Protect the board from humidity, dust, corrosive vapors and mechanical stress.
    • For storage and operation, avoid electromagnetic fields and static electricity. These can damage the electronics on the product. For storage, always use the antistatic bag.
    • The allowed operating temperature range is 25℃ ± 10℃.
    • The storage temperature should be between –10℃ and +60℃.
  • Laser Safety
    • This product is intended for controlling a laser scan system. Therefore all relevant laser safety directives must be known and applied before installation and operation. The customer is solely responsible for ensuring the laser safety of the entire system.
    • All applicable laser safety directives must be adhered to. Safety regulation may differ from country to country. It is the responsibility of the customer to comply with all local regulations.
    • Please observe all laser safety instructions as described in you scan head or laser module manual, and this manual.
    • Always turn on the power of this product and the power supply for the scan head first before turning on the laser. Otherwise there is the danger of uncontrolled deflection of the laser beam.
      We recommend the use of a shutter to prevent uncontrolled emission of laser radiation.

Main features

  • The expansion card does not need external power supply, just need to connect to DLC board it will be work.
  • The output signal of the expansion card to meet various types of laser signal demand.
  • The expansion card laser feedback signal uploaded to the software for monitoring the working state of the laser.

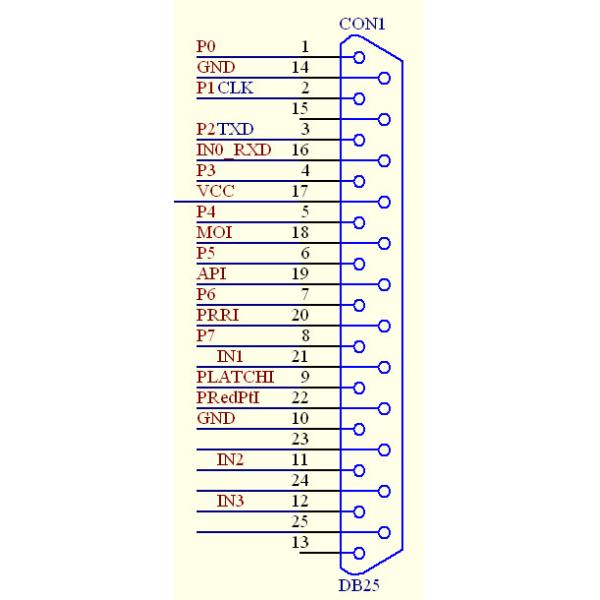

Pin No.SignalIllustration
1——8P0——P7Laser power signal. TTL compatible
9PLATCHPower signal latch. TTL compatible.
10, 14,GNDThe reference ground of the control board.
16, 21,11,12LASERST0~3Alarm signal of Laser module
17VCC5V power output.
18MOMain oscillator signal. TTL compatible.
19APPower amplifier signal. TTL compatible.
20PRRPulse repetitive rate signal. TTL compatible.
22RedPtRed light pointer signal. TTL compatible.
23EMSTOPEmergency stop signal. TTL compatible.
